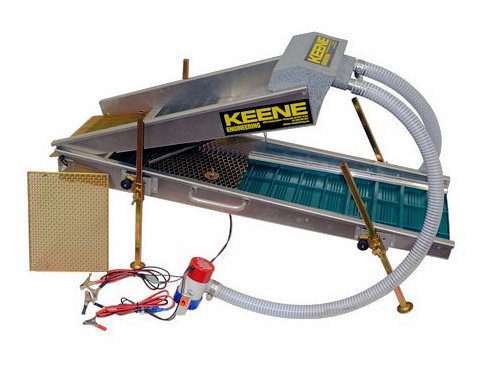

Keene Mini Max Highbanker Concentrator This package includes a removable mat for the lower sluice box converting into professional clean up machine (by sliding out the green rubber riffle and replacing it with Miracle Matting). An additional finer woven mesh classifier in the top hopper when using as a clean up system. Two 12 volt water pumps, hoses and connectors to make the system complete. 12 volt water pumps, hoses and connectors to make the system complete. The combination of the finer classification and the Miracle Matt provides unsurpassed fine gold recovery not found in any other clean up system. It also includes a flare for use as a hand sluice. The top classifier hopper is equipped with a new flood header that provides smooth clean water flow through the trough. The hopper sluice lifts off easily to inspect lower sluice. Water flows out of the flood header over a slick plate then on to a 6” section of miracle matting providing a preview to indicate if your collecting gold eliminating the need to cleaning the lower sluice needlessly. Then the material is washed over a removable classifier grizzly screen for bank run type gravel. The lower sluice box is lined with our green rubber riffle that recovers fine gold and can handle higher volumes of material. Unsurpassed in fine gold recovery with a capacity up to ¾ of a yard per hour when using as power sluice.
When using as a concentrating machine, the lower sluice box containing Miracle Matting is partially covered by oversized expanded metal. When using the unit in this mode, you can expect capacity up to 1/4 yard per hour. When using as a high banker, just shovel into the classifier hopper without the need of pre-classification and move more material with less effort. Powered by battery driven 2 each 1100 gallons per hour, 12-volt pumps or a small single gas powered pump. Ideal for back packing and folds into an amazing compact size of 36” x 7” x 14” weighing under 15 lbs. The 4 independent legs fold up with the new pin-lock system, large wing nuts provides elevation control. Battery power provides a silent operation for areas that you do not want to draw attention or. Ideal for a water recirculating concentrator in the field or even a home. Net Weight: 19lbs Shipping Weight: 29lbs
